Products Details

Recognized the current defects of series’ type of ‘flat-array’ LED surgical light on the fair, CMEF, Shenzhen 2008 by YIDA Medical & OSRAM, who spent jointly 4 years later in R&D and the latest LED tech applied into Surgical Light called ‘iTLED’ series Surgical Light with ‘ITOS by OSRAM’ was launched on 2012.

The state-of-the-art iTLED is a ‘close-knit’ of ‘perfect innovation’ and ‘classic optical design’, for which translates into a higher illumination level of 160,000 lux with the lowest possible energy consumption(105W), shadow-free and gap-free illumination of the uniformed and optimum lighting field is tunable easily for illumination depth and distribution size. Durable high-performance offers free of maintenance.

TECHNOLOGY

• Center LED module light source, Ra=97 and R9=91 CRI via LED Tech
• Low light beam temperature as no IR in LED spectra.
• GLARE FREE DESIGN of Reflector-relaxed work, supports wellbeing and not getting tired while long surgeries.
• No glare and blue hazard tested spectral design-no negative impacts of LED illumination on health of doctors eyes.

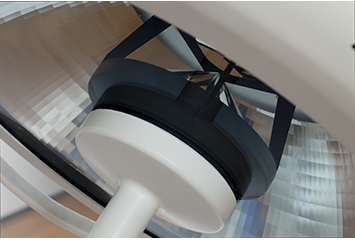

• Optimal depth illumination via reflector tech
• ATM(automatic temperature management) tech for protecting against overheating of LEDs and improve life time

LUMINOUS EFFICACY

• LED technology achieves high light output ratio
• Greater efficiency with high-performance LEDs
• Reliable optics with primary and secondary reflectors

ILLUMINANCE AND ILLUMINATION DEPTH

• Central illuminance at 1 m distance is 160,000 lux
• Illumination depth L1 + L2 is ≥950 (RBS* 20%) mm // high shadow resolution
• RBS*: residual illuminance

ENERGY AND MAINTENANCE

• Less than 50 high-performance LEDs for optimal efficiency and 30,000 hours of light (Illuminance≥70%)
• Free of maintenance

CONTROL

• Easy and smooth control of NCLED offers more than comfort.

HYGIENE

• A continuous housing for easy cleaning.
